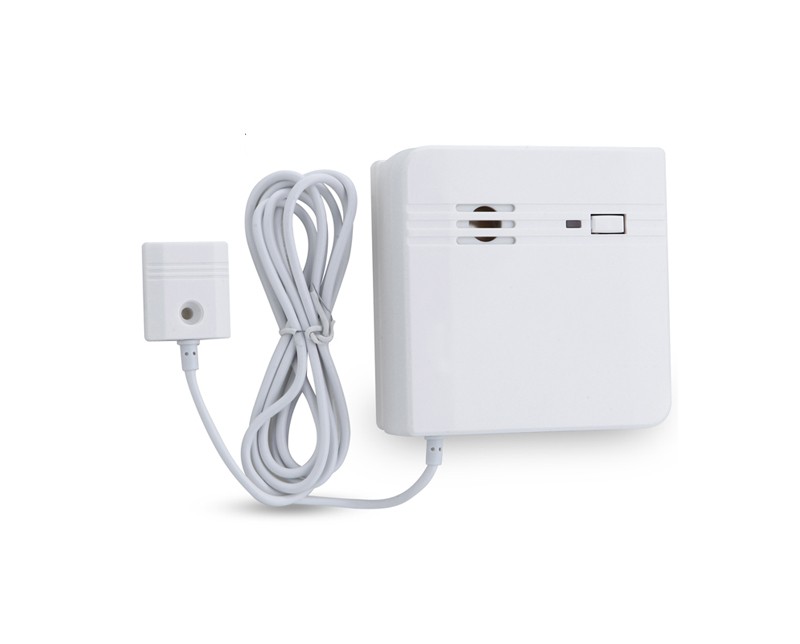

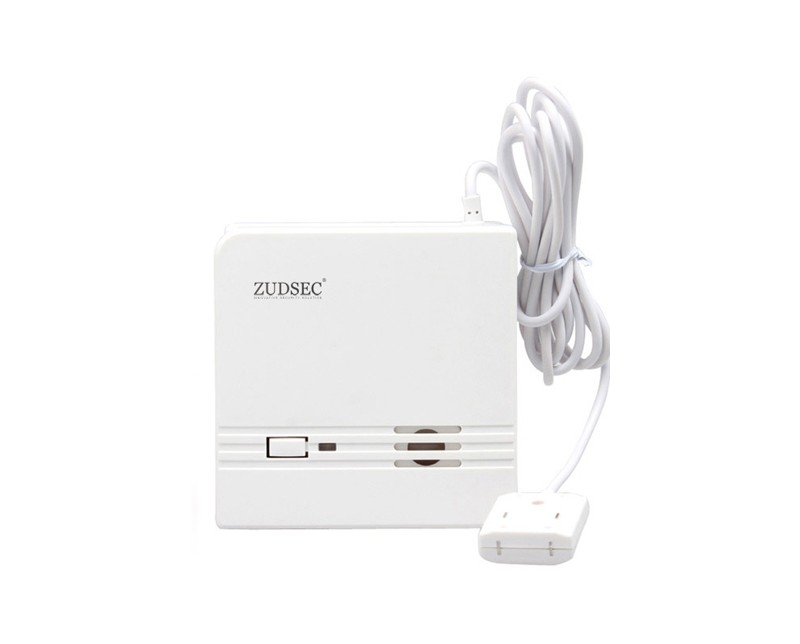

Water Leakage Detector: ZDD-001WL
Multi-Angle View

Water Leakage Detector

MODELZDD-001WL

Facebook Twitter InLink instagram Youtube Skype
  • Rust-proof metal probe, long service life

  • Sound and flash alarm

  • Low power consumption design

  • Low battery warning

  • Test and hush button

  • MCU processing, resist false alarm efficiently

Water Leakage Detector: ZDD-001WL using the principle of electrode immersed  resistor  changes to detect water. The detector adopts MCU intelligent  detection,  rust-proof  metal probe design with advantages of high accuracy and sensitivity, low power consumption, long-term stability and reliability, etc

It can be widely used in all water storage equipment, such as basement, water tank, machine room, water route, water tower,wat er cellar, pools, water room, solar energy and anywhere to detect water leakage area.


- Wired/ wireless/ Independent use optional
Another Wired model: ZDD-002 /003 /004WL optional


- Rust-proof metal probe, long service life
- Sound and flash alarm
- Low power consumption design
- Test and hush button
- Low battery warning
- MCU processing, resist false alarm efficiently
- SMT manufacture technology, good stability

TypeIndependentWirelessWired
Operating voltage DC3V(2x1.5V AA Alkaline   Batteries )DC9- 24V
Static current10uA10 uA22mA
Alarm current40 mA50mA130mA
Alarm indicator Red LED and buzzer sounding
Fault indicator Yellow LED
Alarm outputSounder & Flash AlarmWireless   transmissionRelay(NC/NO)
315MHz/433MHz
Working Temp. 0 ~60
Humidity 0 ~ 80%RH( no congelation)
Sound level 85dB/3M
Hush time 10 minutes
Installation Wall mount ed or board   ins tal led
Dimension 89*8 9*28mm(bracket not included )


Package Contents:

  • Standard Exporting Packing Box
