WiFi App Control
IP68 Waterproof design
Touch Keypad, with doorbell key
2000 uers Capacity
Data backup output/input
Card appliance: 125kHz EM ID cards ( MF card optional)
Identification way: APP, Card, Pin, Card+Pin

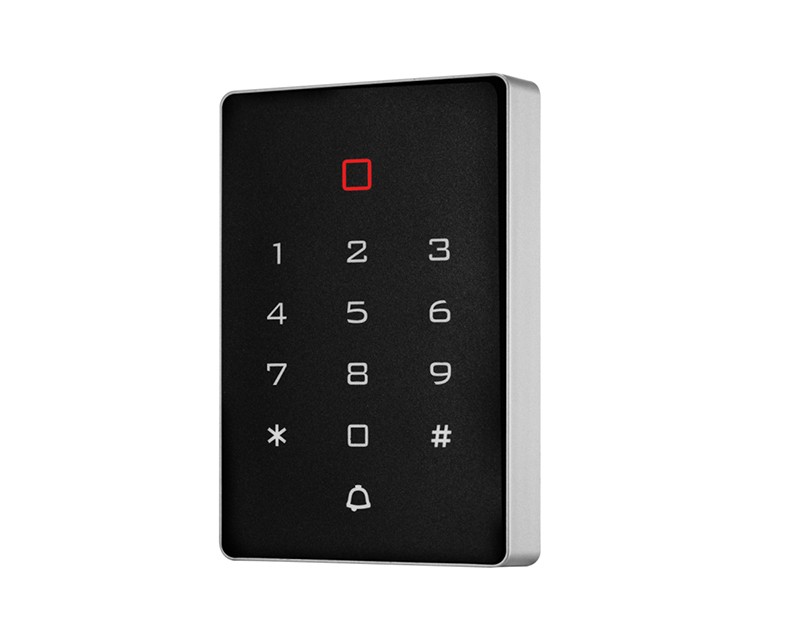

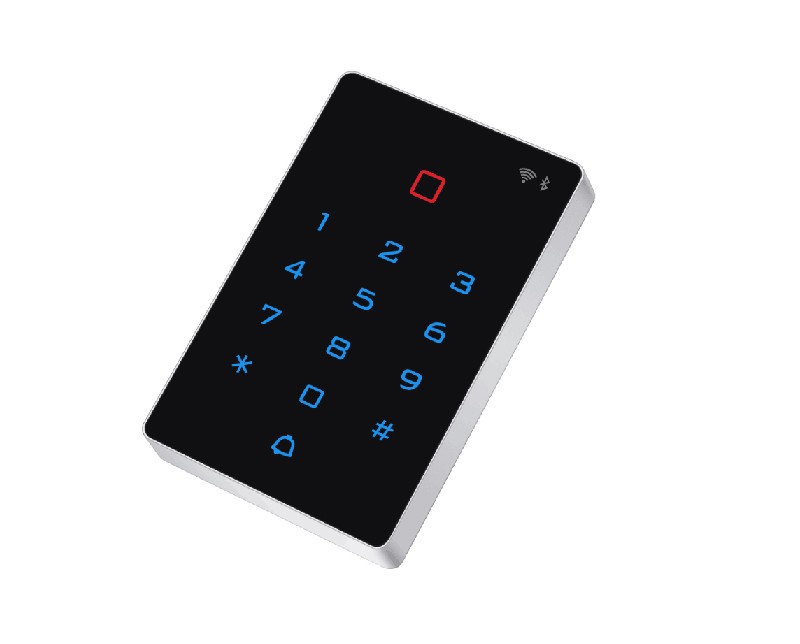

WiFi Access Controller -Touch Keypad : WiFi Network, Remotely open the lock by APP control, WG26 output/Input, 2,000 cards Capacity, It builds-in STC microprocessor, with strong anti-interference ability,high security and reliability,powerful function and convenient operation. It’s widely used in high-end buildings, residential communities and other public places.
Optional model: ZDAC-300WT (without waterproof function)
- Capacity: 2000 card users
- Can be used as WG26 reader
- Can connect external EM/HID WG26 output reader
- Two units can be interlocked
- Can realize Anti-passback function for single or two doors
- Can add consecutive user cards
- Can set master add card/master delete card
- Data backup output/input: Send the data to external device, or receive the data from external device.
- Relay toggle mode: After unlocked the door, users should read the card again or press exit button to lock the door,
Model | ZDAC-300TW-WiFi |
RFID users | 2000 |
Waterproof | IP68 |
Supply Voltage | 12VDC±10% |
Sleeping Current | <20mA |
Stay Current | <30mA |
Temperature | -15ºC-60ºC |
Humidity | 20%RH-95%RH |
Lock output load capacity | 3A |
Alarm output load capacity | 20A |
Door Relay time | 0~99S (Adjustable) |
Card Reading Distance | 1~3cm |
Dimensions | 115L*56W*22H(mm) |
N/W | 300g |
G/W | 3500g |
Package Contents:
Standard Exporting Packing Box
