4- Channel WiFi Relay Module: ZDRR-104W

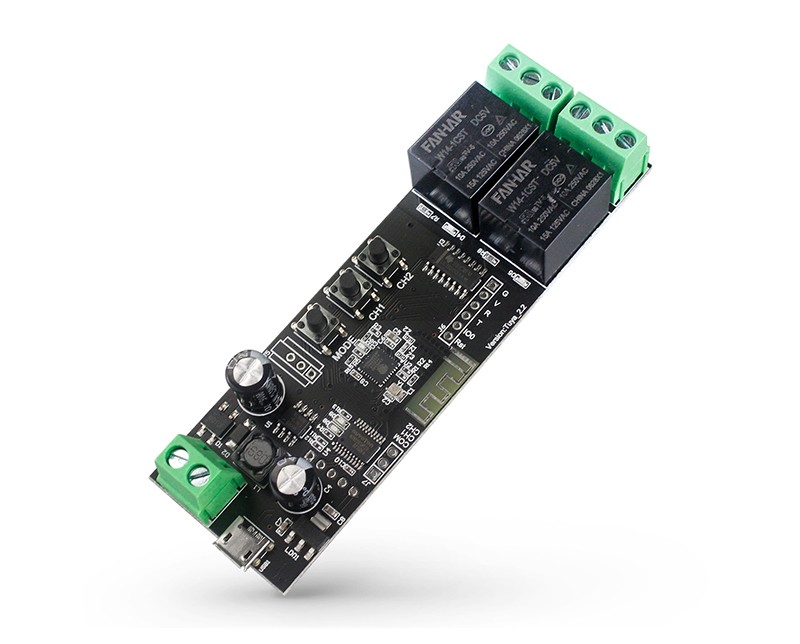

2- Channel WiFi Relay Module: ZDRR-102W

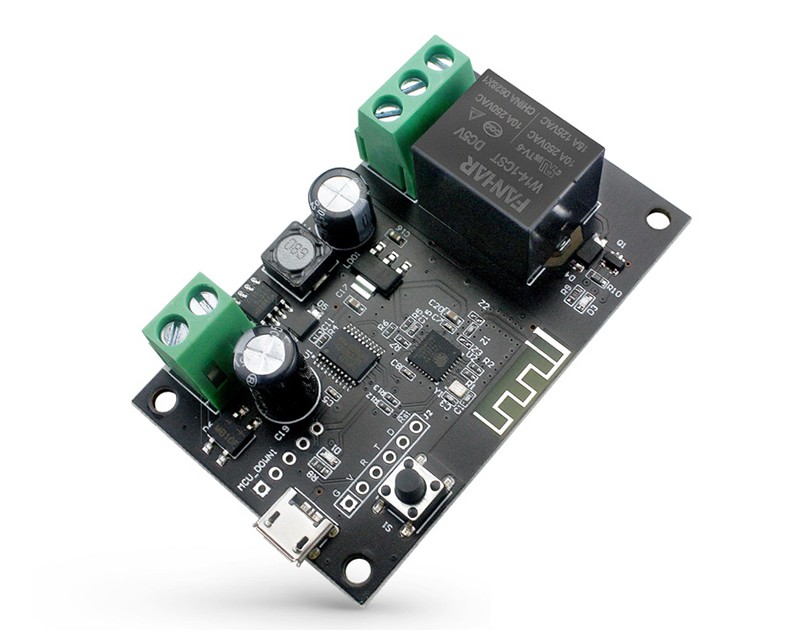

1- Channel WiFi Relay Module: ZDRR-101W

1/2/4 Channel WiFi Remote Control Relay Module

MODELZDRR-104W/102W/101W

Facebook Twitter InLink instagram Youtube Skype
  • Smart Life APP with Voice Control

  • Wifi Remote Control Switch Module

  • 3 Working modes: Inching, interlock, self-lock

  • Input: 5v MicroUSb/ DC7~32V;

  • Output:  10A Max/channel

  •  Make it wireless, Smart timer, Share control

  • Voice Control by Amazon Alexa/Google Home/IFTTT

  • Can work individually, or can control them separately via the app

WiFi Smart Remote Control Relay Module:  Wifi smart life APP with VoiceControl, 3 working model with Inching, interlock, self-lock. Make all wireless, turn your wired security, access control, home automation, or gate operation into an efficient wireless operaiton, it's widely used for all kind of security /access control/smart home solution like: electric door, curtain, window and gate, switch and so on.


- Optional Model: ZDRR-102W(2-channel) / ZDRR-101W(1-channel)

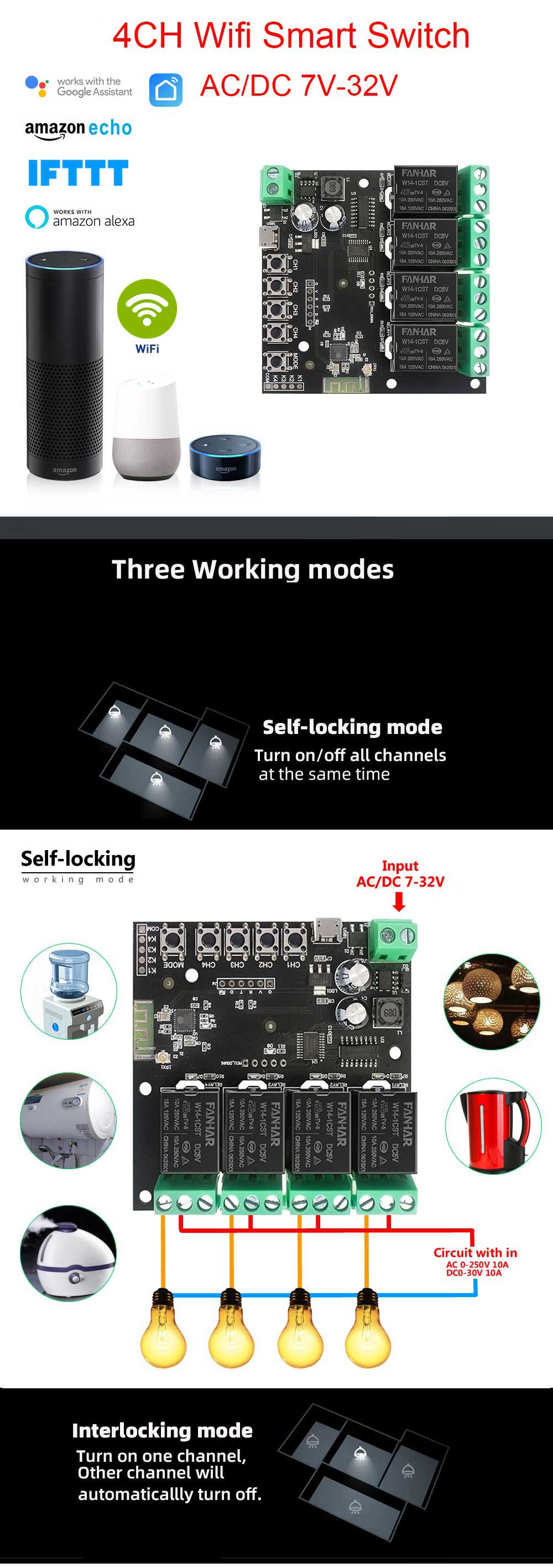

1/2/4 Channel WiFi Remote Control Relay Module(图1)

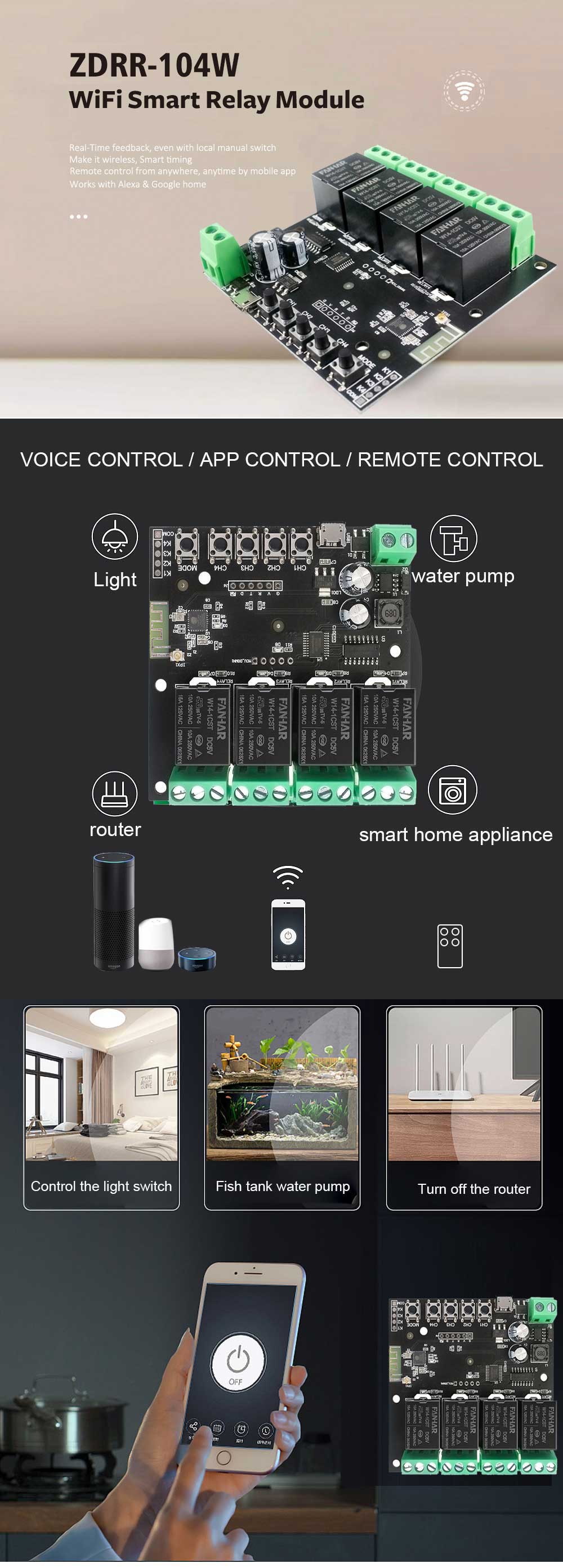

1/2/4 Channel WiFi Remote Control Relay Module(图2)

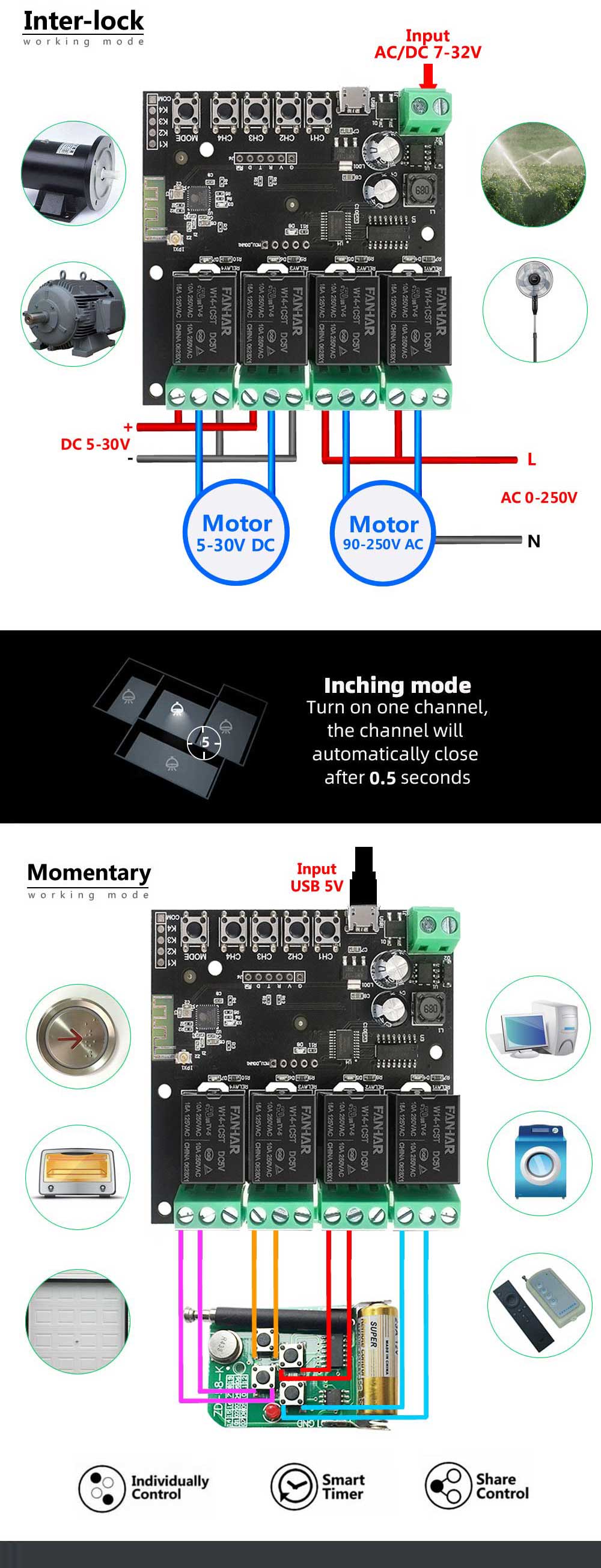

1/2/4 Channel WiFi Remote Control Relay Module(图3)


- Wifi smart life APP with VoiceControl

- High security, larger storage, stable performance, low power consumption and easy operation.
Learning code between remote control and wireless relay receiver
- With ZUDSEC Remote offers flexible installation options.
- The relays can be Normally Open (N.O.) or Normally Closed (N.C.).
- Three working modes: Inching, Self-Lock and Interlock.
- Make it wireless, turn your security, access control, home automation, or gate operation into an efficient wireless operaiton.
- Suitable: electric door, window and gate, industrial control,
home appliances and security system and so so.

  • Working modes: Inching, Self-Lock and Interlock.

  • Input: 5v MicroUSb/ DC7~32V;

  • Output:  10A Max, 4 Gang

  • Coding type: learning code

  • WIFI:IEEE 802.11 b/g/n  2.4GHz

  • Operating temperature :-20℃ ~ +50℃

  • Receiving sensitivity :≥-105dBm

  • Product size: 73*73*18mm; Gross weight:  98.3g



Package Contents:

  • Standard Exporting Packing Box
