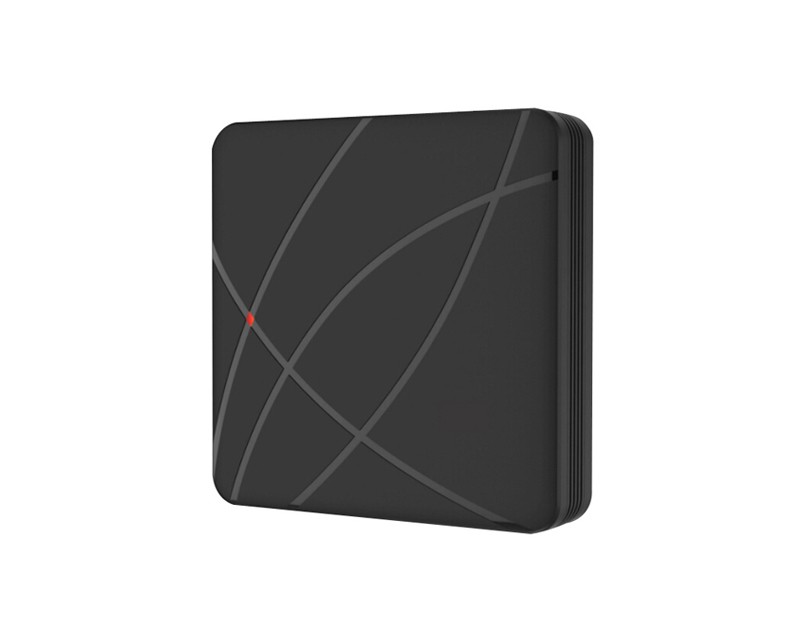

Card Reader: RFID type ID access control card reader, Reading Distance is about 3-15CM; Support Wiegand 26bits/ Wiegand34bits /ABA Standard Format Data Output. It's widely use for Access control, Parking lot, Campus ID, Time attendance, Hotel Management.

- Support UEM 4100 ID Card or compatible with it( 64bits, Manchester Code) or Mifare 1 Card (13.56 MHz Frequency)
- Built-in Antenna
- Built-in LED (Double Color LED)
- Built-in Loud Speaker (Buzzer)
- 100 Meters Communication Distance
- Real Time Data Transfer

• Reading Mode: 125KHz EM-ID Card; or 13.56 MHz Mifare-ID optional

• Proximity Range: 3-15cm

• Output Format: Wiegand 26/34, RS485/232

• Communication Distance: WG≤100M, RS485≤1200M

• Response Speed: Less than 0.2 second; Proximity Time Distance: Less than 0.5 seconds :

• Wiring connection:
  Red: VCC +12V; Black: GND; Green: D0/RX/4R+; White: D1/TX/4R-; Blue: LED/CS; Yellow: BEEP

• Working Voltage: DC12V; Working Current: 70mA

• Color: Dark Grey Color

• PVC Case Material (Black Resin for Water-Proof Function)

• Temperature: -25℃ to 75℃; Humidity: 10%-90%

• Product size: 86×96×19mm

• Packing size: 110*50*18mm; Weight: 0.15kgs

Package Contents:

• Standard Exporting Packing Box
