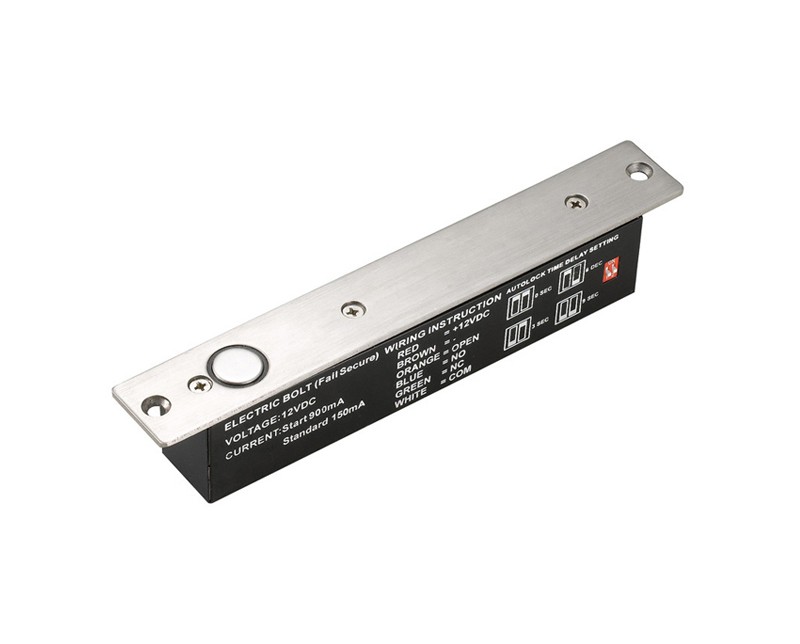

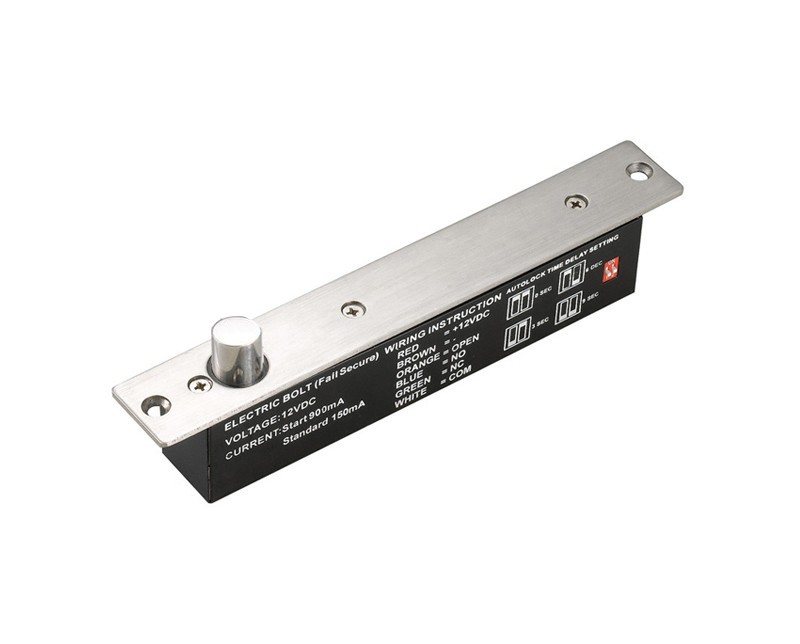

Sturdiness ElectricBolt Lock With Signal & Time: 6 Wire, Superier low temperature design, With Signal output & Time delay, Safe & durable, Suitable for Wooden Door,Glass Door,Metal Door,Fire Proof Door etc.

- Optional lock Model No.:

* ZDL-210NC：(Fail-Safe type: Power to lock)
* ZDL-210NO：(Fail-Secure type:  Power to open(unlock)

- Superier low temperature design
- Lower power consumption, Enviromental protection
- Door status signal output contact (NC.COM or NO. COM)
- Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt
- Long Life  with 500000 Operations.
- Safe & durable.
- Working Measure: power-on to lock, power-off to unlock.
- Suitable for: Wooden Door,Glass Door,Metal Door,Fire Proof Door

• Input Voltage: DC12V

• Working Current: 900mA; Static Current: 120mA.

• Working Measure: Fail safe, Locked when energized(ZDL-210NC).

• Fail-safe type: Power to lock

• Coil type: Continuous working

• Solid Bolt: polishing housing, 800Kg Holding Force

• Surface Temp: Low Temperature

• Induction Distance:8mm

• Product Size: 205Lx30WX38H(mm)
         Packing size: 23.5*6.5*5cm, Weight: 0.95Kgs

• Operating temp: -10~+55°C(14-131F)

• Operating Humidity: 0~90%

• Special Designed: Tested to 500000 cycles

• Face place material：High Aluminum, Carrulous Line Finished

Package Contents:

• Standard Exporting Packing Box
