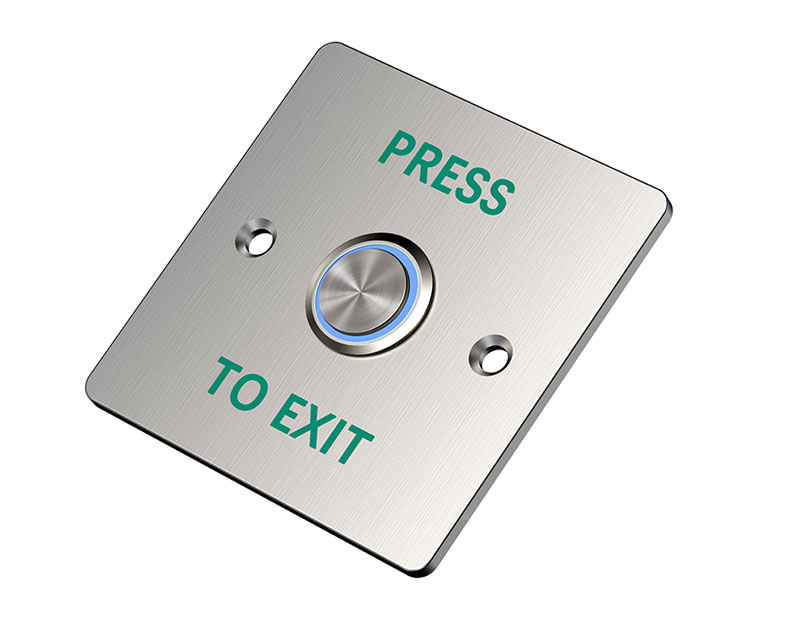

ZDBT-701BWL With Bule LED light

ZDBT-701BWL With Bule LED light

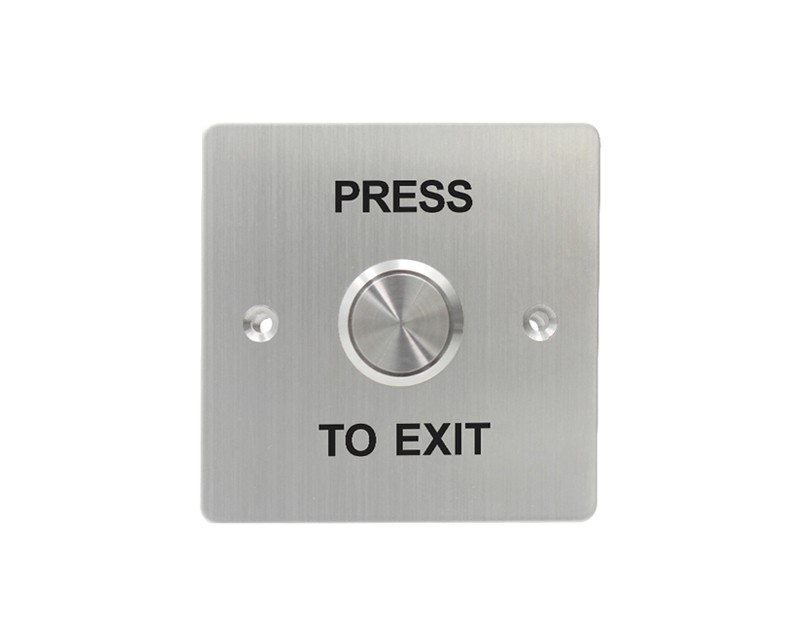

Waterproof Stainless Steel Exit Button: ZDBT-701BW

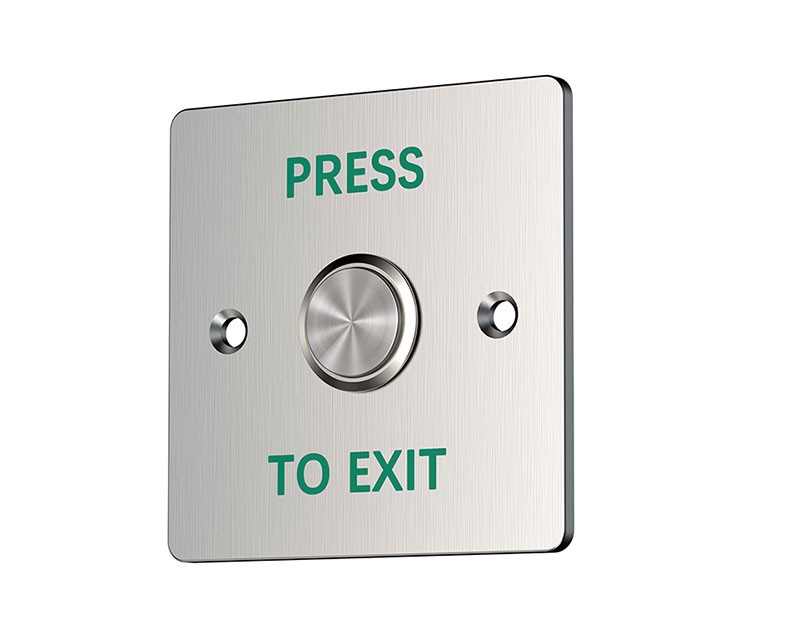

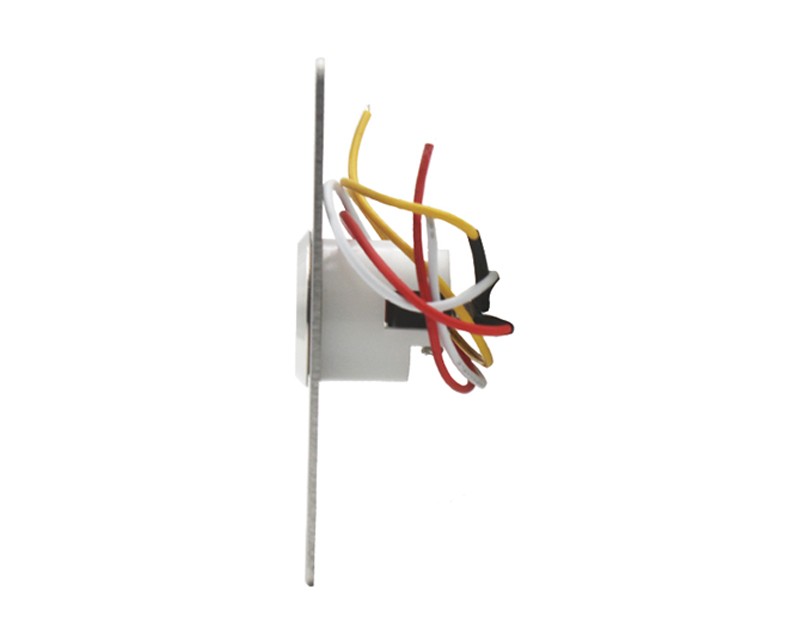

Multi-Angle View

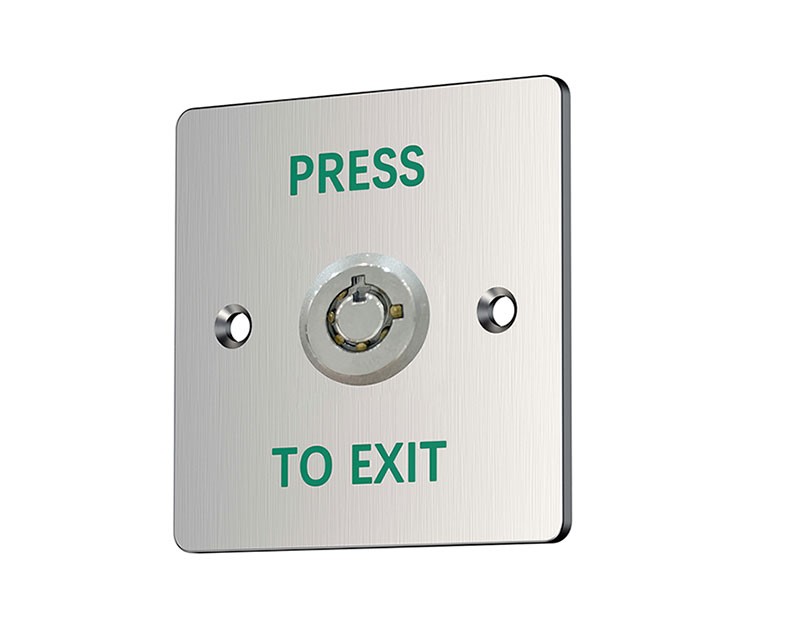

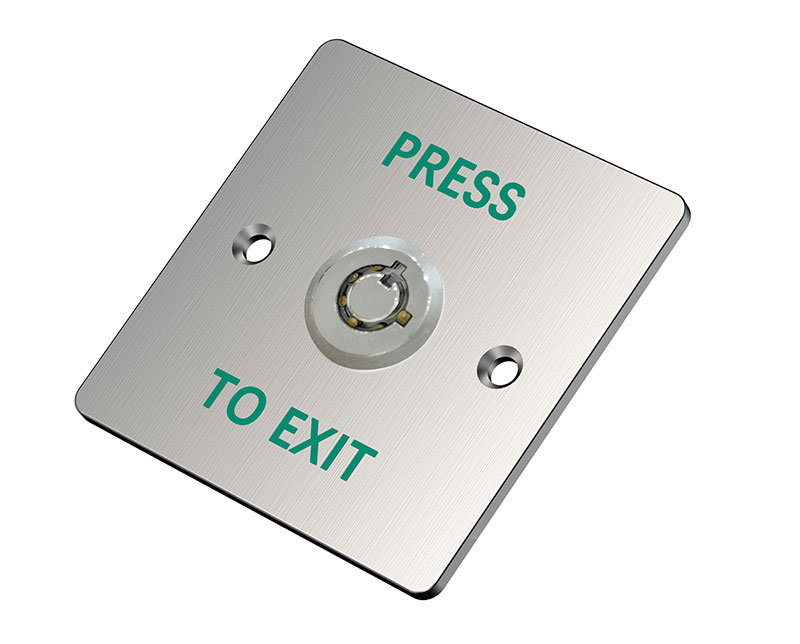

ZDBT-701BWL With Key

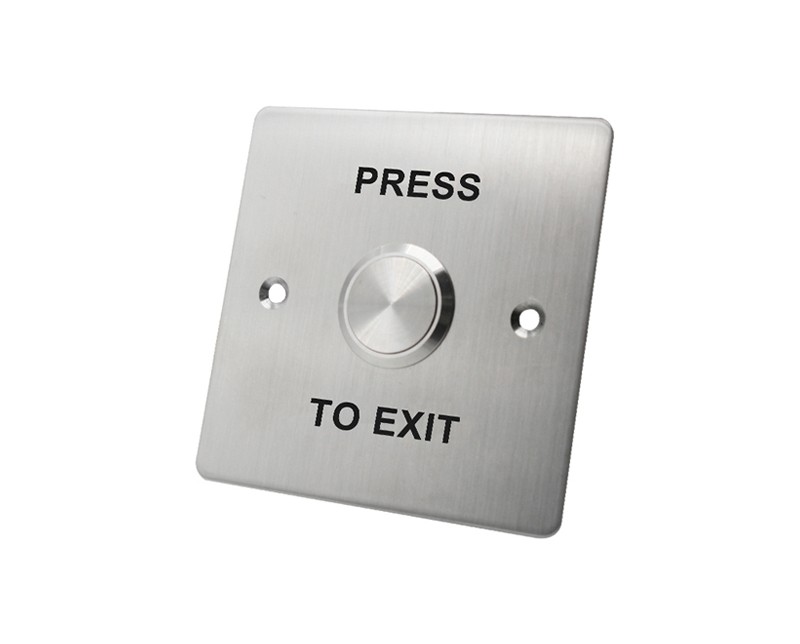

Multi-Angle View

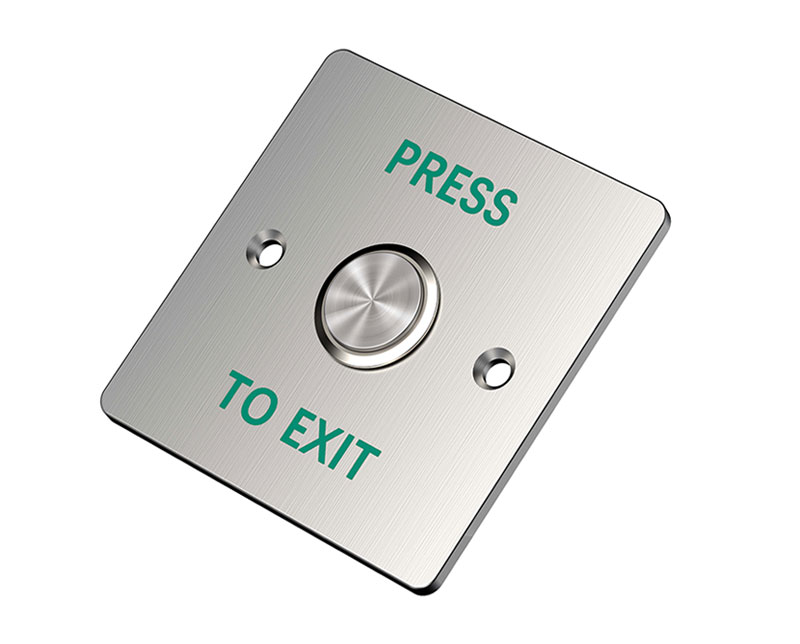

Multi-Angle View

Multi-Angle View

Multi-Angle View

Multi-Angle View

Multi-Angle View

Waterproof Stainless Steel Exit Button

MODELZDBT-701BW

IP68 Waterproof design
Stainless steel Panel and button
500000 times life
Thickness: 1.7mm
Contait Output: NC.&NO.
Suitable for all kinds of locks.

GET A FREE QUOTE

Overview Features Specifications Other Information

Waterproof Door Release Exit Button: Waterproof design, IP68, Stainless steel Panel and button, 500000 times life, Auto reset, Can be used as door release button, it's widely used for access control system.

- Optional model:

* ZDBT-701BWL With Bule LED light

* ZDBT-701BK with Key

- Stainless steel Panel/button
- Waterproof design, IP68
- Mechanical Life: 500000 tested

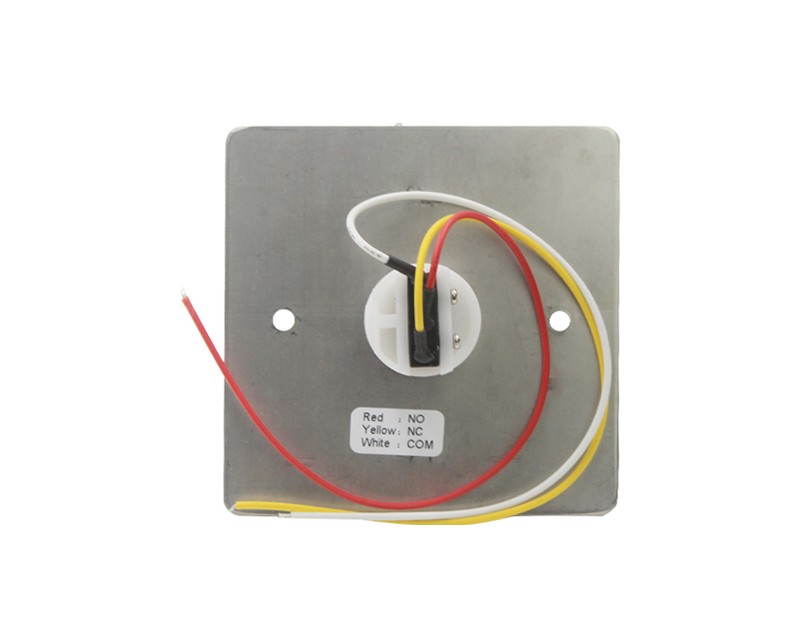

- Contact Output: NC.&NO.
- Thickness: 1.7mm
- Suitable for Door: Hollow Door

Mechanical Life: 500000 tested
Thickness: 1.7mm
Material: 304 Stainless steel
Contact Output: NC.&NO.
Current Rating: 3A 36VDC Max
Suitable for Door: Hollow Door
Operating temp: 10~+55ºC(14-131F)
Operating Humidity: 0-95% (non- condensing)
Product Size: 86×86mm; Packing size: 105*90*40mm; Weight: 0.15kg

Package Contents:

Standard Exporting Packing Box
